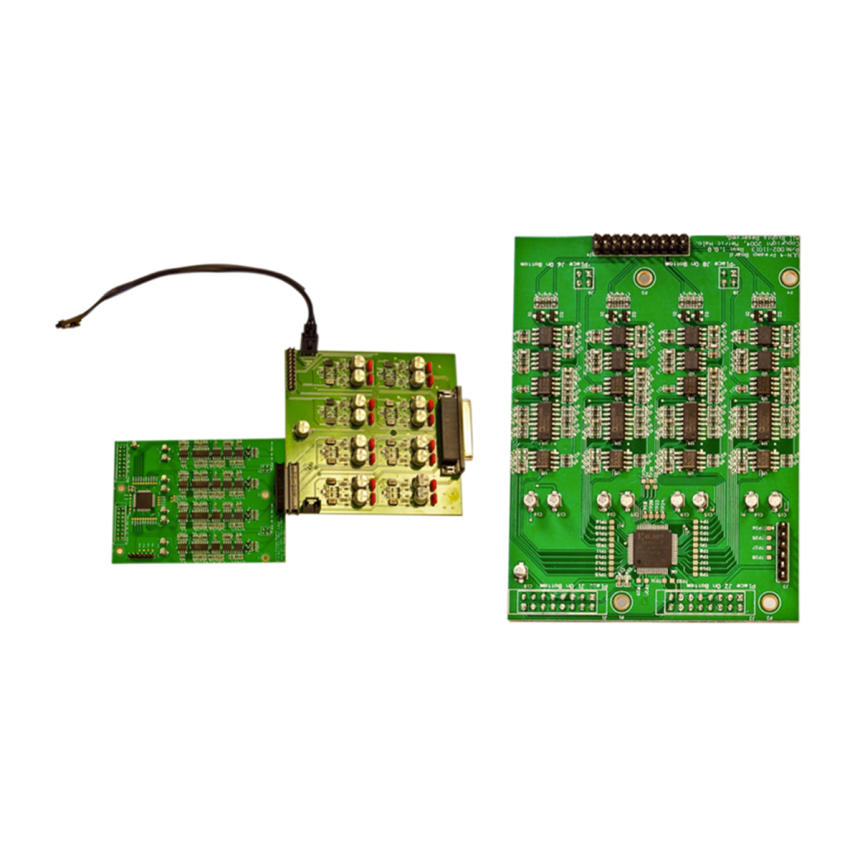

Metric Halo LIO-8 8 Channel (1-8) ULN-R Preamp Kit
LIO-8 8 Channel (1-8) ULN-R Preamp Kit
|
Want your LIO-8 to have the same boutique-quality mic preamps found in the ULN-8? Add them to your LIO-8, with the LIO-8 8 Channel ULN-R PreAmp Kit.
| Mic Pre Input + ADC |
| Input Impedance |
3.3 kΩ |
| Dynamic Range (-60 dB, flat 0-22.05 kHz, typ) |
115 dB |
| Dynamic Range (-60 dB, A-weighted, typ) |
118 dB |
| Noise Floor (flat 0-22.05 kHz, typ) |
115 dB |
| Noise Floor (A-weighted, typ) |
117.9 dB |
| Gain Range |
-22 dB to +91.5 dB |
| Gain Precision |
±0.05 dB |
| Gain Step |
0.5 dB |
| THD D/A/A/D loop @ -12 dBFS |
0.0007 % |
| THD D/A/A/D loop @ -12 dBFS +12 dB Gain |
0.0015 % |
| THD D/A/A/D loop @ -0 dBFS |
0.0023 % |
| Crosstalk @ 1kHz |
-110dB |
| IMD 1k component (19 kHz/20kHz @ +8dBu) |
-104 dBu |
| EIN @ 60 dB Gain (150Ω Source Impedance) |
-130.50 dBu |
| EIN @ 60 dB Gain (0Ω Source Impedance) |
-133.25 dBu |
| Analog Send Calibration (ADC = 0 dBFS) |
+21.5 dBu |
| Phantom Power (Switchable Per Channel) |
+48 Volts |
| Mic Pre + ADC Frequency Response |
| +0/-0.1dB @ fs = 44100 Hz |
8.9 Hz - 20.5 kHz |
| +0/-1.0dB @ fs = 44100 Hz |
2.9 Hz - 21.0 kHz |
| +0/-0.1dB @ fs = 96000 Hz |
8.9 Hz - 43.9 kHz |
| +0/-1.0dB @ fs = 96000 Hz |
2.9 Hz - 45.4 kHz |
| +0/-0.1dB @ fs = 192000 Hz |
8.9 Hz - 42.1 kHz |
| +0/-1.0dB @ fs = 192000 Hz |
2.9 Hz - 64.7 kHz |
| 5° low-end in-channel phase deviation point |
20.0 Hz |
| Interchannel phase 0 Hz - 20 kHz |
< ±0.05° |
| Crosstalk from SMPTE Input |
< -142 dB |
|
