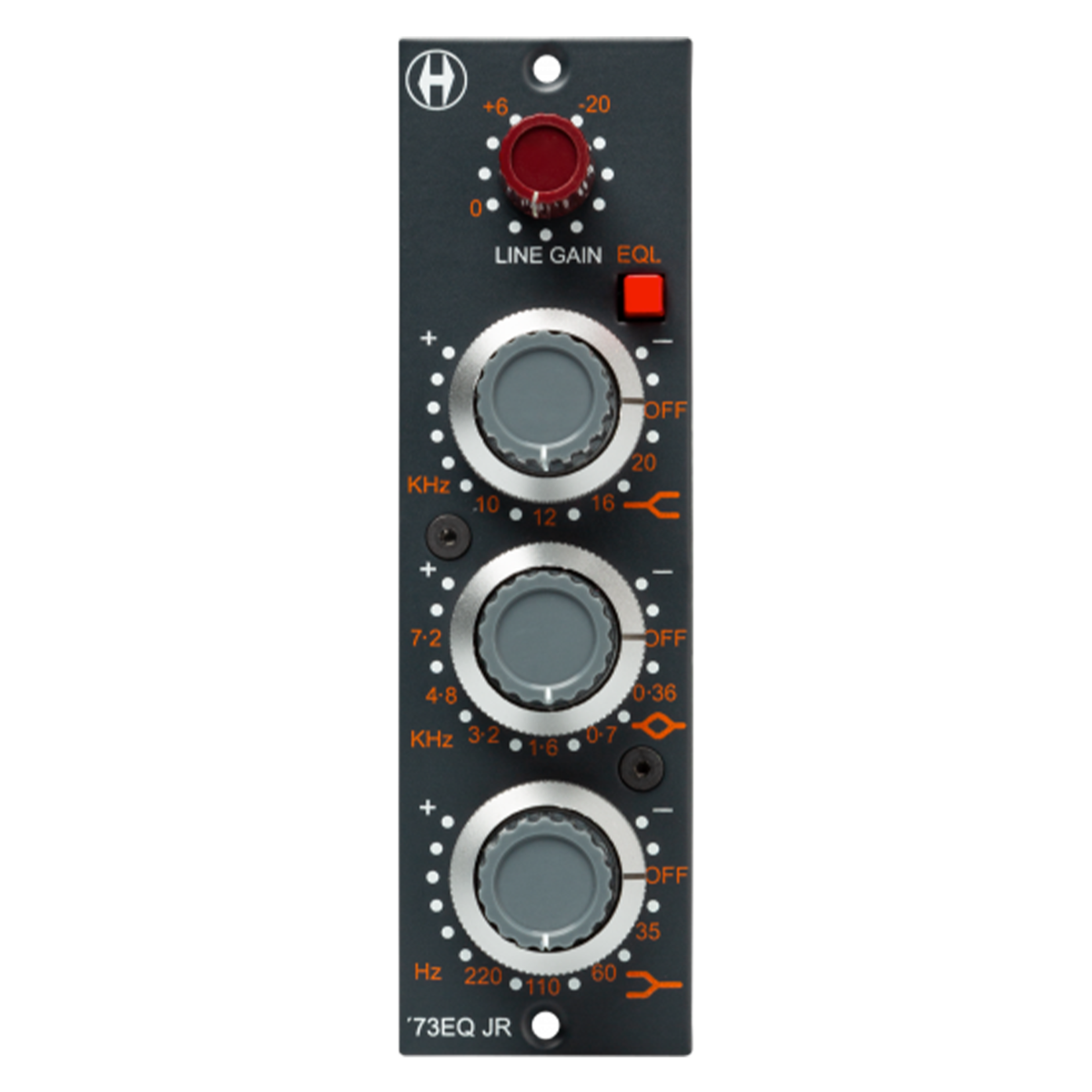

Heritage Audio 73EQ JR 500 Series Equalizer

Heritage Audio 73EQ JR 500 Series 3-band EQ at a Glance:

• The sound of countless hit records
• All the EQ you should ever need

The sound of countless hit records

Those of us at Sweetwater who have worked on vintage Neve boards can tell you: if you've got good-sounding, well-miked sources, just push up the faders and you're in great shape. Kick in a 1073 equalizer and all bets are off: this is the best-sounding EQ you've ever heard. That's what you get with the Heritage Audio 73EQ JR. Massive, punchy, vibrant sound that seems to leap from your speakers. It's the sound that created countless hit albums, and you've got it on tap with the 73EQ JR 500 Series module.

All the EQ you should ever need

The original 1073 was designed in 1970 as purpose-built preamp/EQ module for Neve 80 Series consoles. Like the original, the Heritage Audio 73EQ's high and low bands are shelving Baxandall types; the mids are fixed-Q dual-inductor based. It's broad-strokes EQ, but it sounds incredible and it's all you may ever need. As a side note: if you have tracks that require surgical EQ precision, chances are good you're doing something wrong earlier in the signal chain.

Heritage Audio 73EQ JR 500 Series 3-band EQ Features at a Glance:

• +6 to -20dB Class A Line preamplifier, bridging input impedance, balanced and floating
• High Frequency: +/- 16dB shelving, selectable at 10, 12, 16 or 20Khz, Baxandall type
• Low Frequency: +/- 16dB shelving, with selectable frequency of 35, 60, 110 or 220Hz, Baxandall type
• Mid Frequency: +/- 18dB peaking, fixed-Q, dual-inductor-based
• Selectable midrange center frequencies: 0.36, 0.7, 1.6, 3.2, 4.8 and 7.2kHz
• Class A single ended, 2N3055 driven, high-headroom output stage
• Internal slow-turn-on +24v power supply for lower inrush current, improving lunchbox performance
• Carnhill transformers; Marconi-style knobs
• Not standalone - requires compatible 500 Series chassis
