Hybrid FireWire / USB2 connectivity

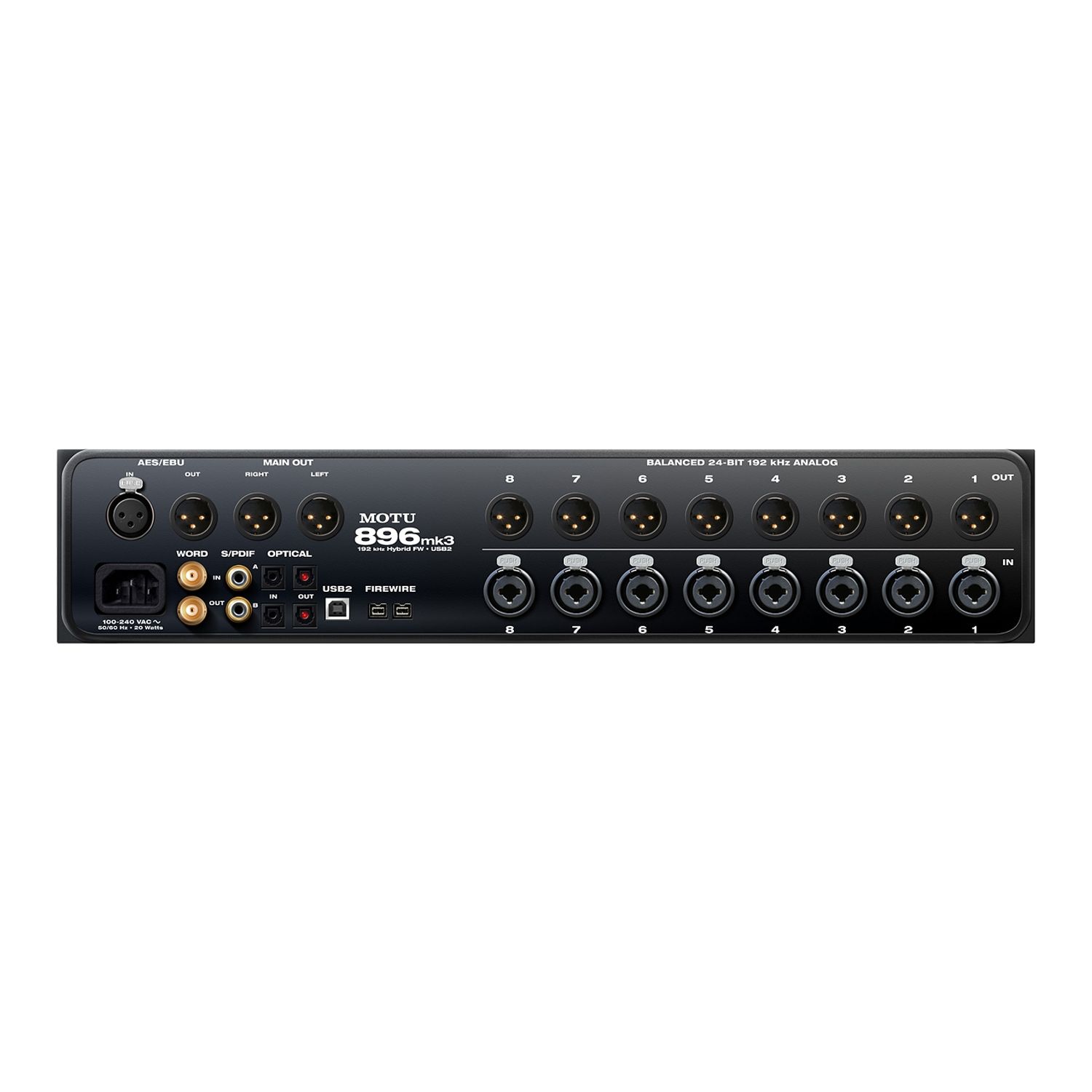

As a hybrid audio interface, the 896mk3 provides flexible connectivity to any Mac or PC via FireWire or high-speed USB 2.0, with eight channels of pristine 24-bit 192 kHz analog recording and playback, combined with sixteen channels of optical digital I/O, stereo AES/EBU, S/PDIF and separate analog main outs. Expand your system by connecting the 8pre mic input expander or other MOTU audio interfaces.

Flexible operation

The 896mk3 is equally well-suited for studio and stage, with or without a computer. As an interface or standalone mixer, the 896mk3 provides 28 separate inputs and 32 separate outputs, including dedicated main outs on XLRs and two front panel headphone outs.

Watch a movie about the 896mk3's on-board mixing and FX processing

On-board digital mixer with effects for monitoring and live mixing

Connect all of your studio gear, including microphones, guitars, synths, keyboards, drum machines and even effects processors. Record, monitor, route and process all of these live inputs using the professional on-board CueMix FX digital mixer – with no latency and no processor strain on your computer. Apply hardware DSP-driven effects processing to inputs, outputs, and busses independent of your host computer. Add Classic Reverb™ with lengths up to 60 seconds. Further sculpt your sound with 7-band parametric EQ featuring filter types carefully modeled after British analog console EQs. Choose between two forms of compression: a conventional compressor and the Leveler™, an accurate model of the legendary LA-2A™ optical compressor that provides vintage, musical automatic gain control.

MOTU FireWire audio interfaces can connect to any Firewire port. Just plug in and go, with any standard cable. The 896mk3 Hybrid provides two FireWire Type B ports, which provide the most reliable FireWire connection available. The ports operate at 400 Mbit/s, and they can be connected to any available FireWire port on your computer, either Type A or Type B. If your computer has FireWire Type B ports, use the included 9-pin-to-9-pin FireWire cable. If your computer has either standard Type A ports or miniature Type A ports, use the appropriate 9-pin-to-6-pin or 9-pin-to-4-pin FireWire cable (sold separately).

When recording from the analog inputs, the 896mk3’s signal overload protection gives you an extra 12 dB of headroom above zero with no clipping or harsh artifacts.

Advanced audio analysis tools

Analyze and scope your audio with advanced diagnostic tools, including a full-screen real-time FFT display, spectrogram "waterfall" display, full-featured oscilloscope, X-Y plot, and linear/polar phase analysis graphs.

Stand-alone operation as a mixer

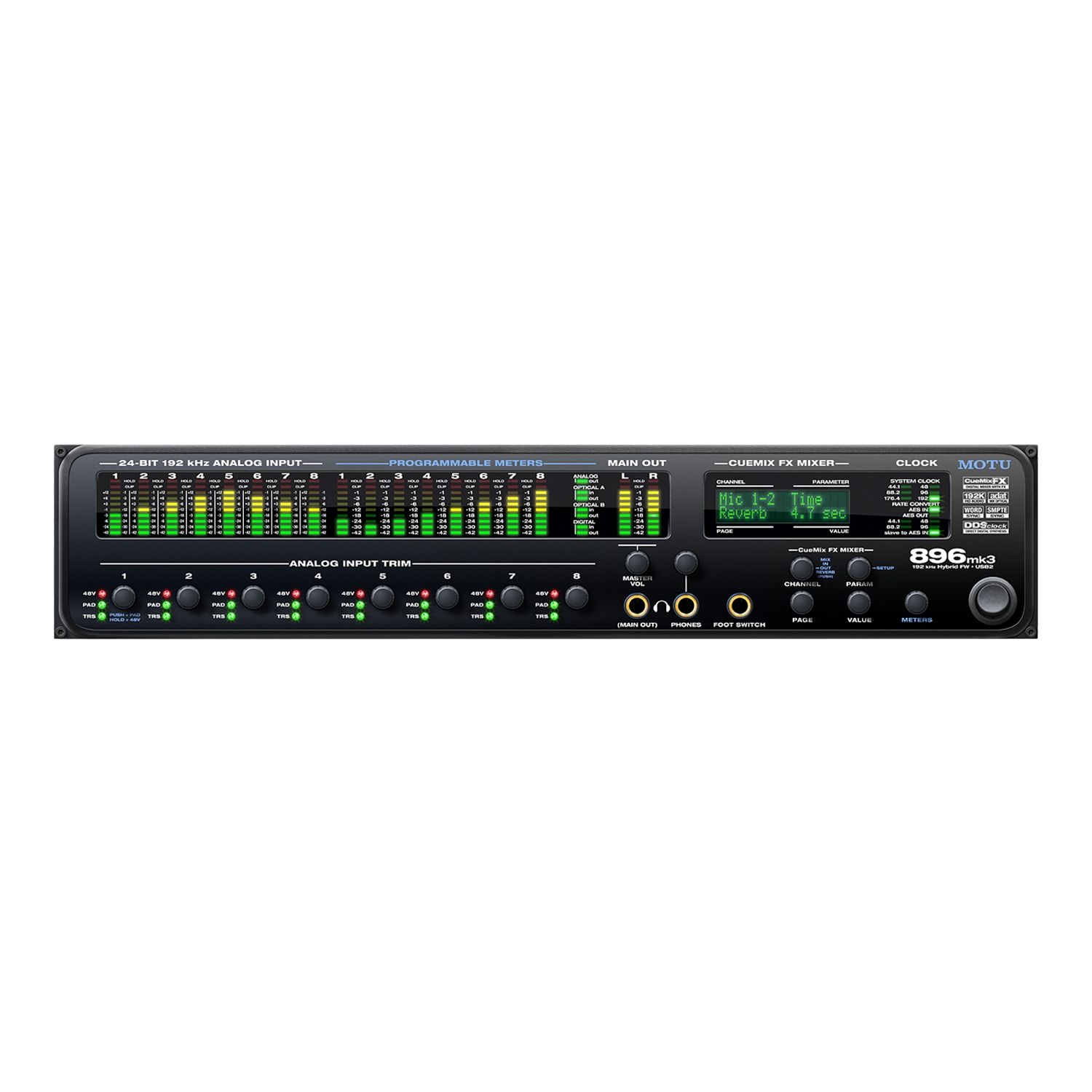

After programming the on-board mixing in the studio, unplug the 896mk3 from the computer and take it on the road for operation as a stand-alone mixer with effects. All mixing and effects parameters are adjustable using the front panel backlit LCD.

Across-the-board compatibility

The 896mk3 provides cross-platform compatibility with Mac and Windows and all of your favorite audio software and host-based effects via WDM/ASIO/Core Audio drivers. Or you can use the included AudioDesk workstation software for Mac, with 24-bit recording/editing and 32-bit mixing/processing/mastering.
