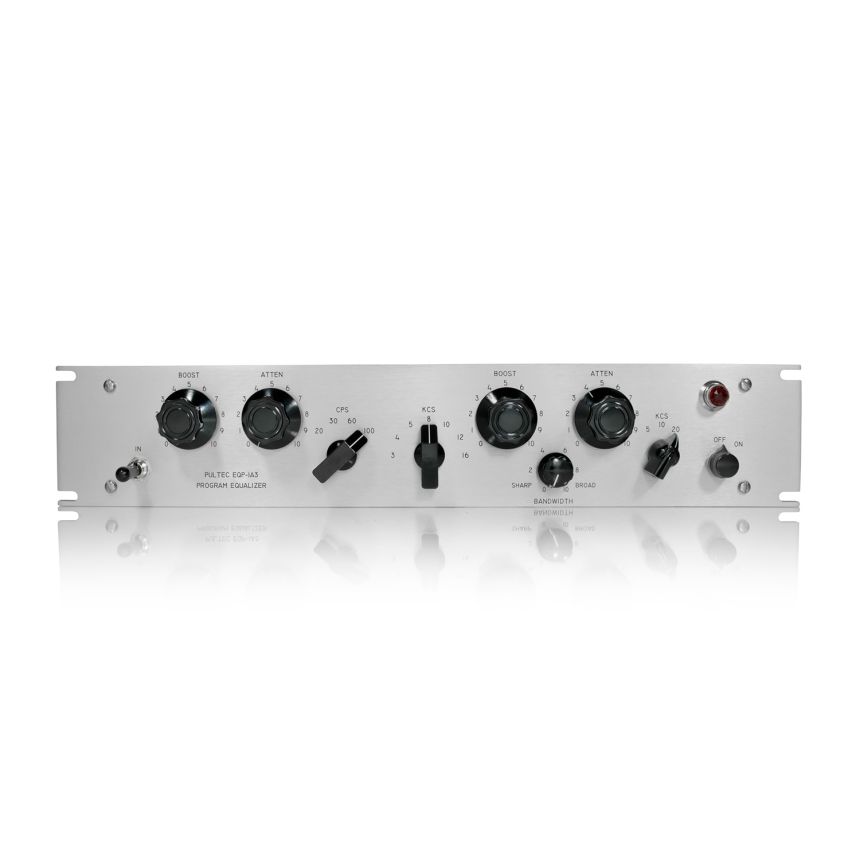

Pultec EQP-1A3 Program Equalizer
฿ 220,000
พร้อมส่ง
SKU
PT-EQP1A3
1-channel, 2-band Tube Equalizer with Switchable Frequency Selection and Variable Bandwidth

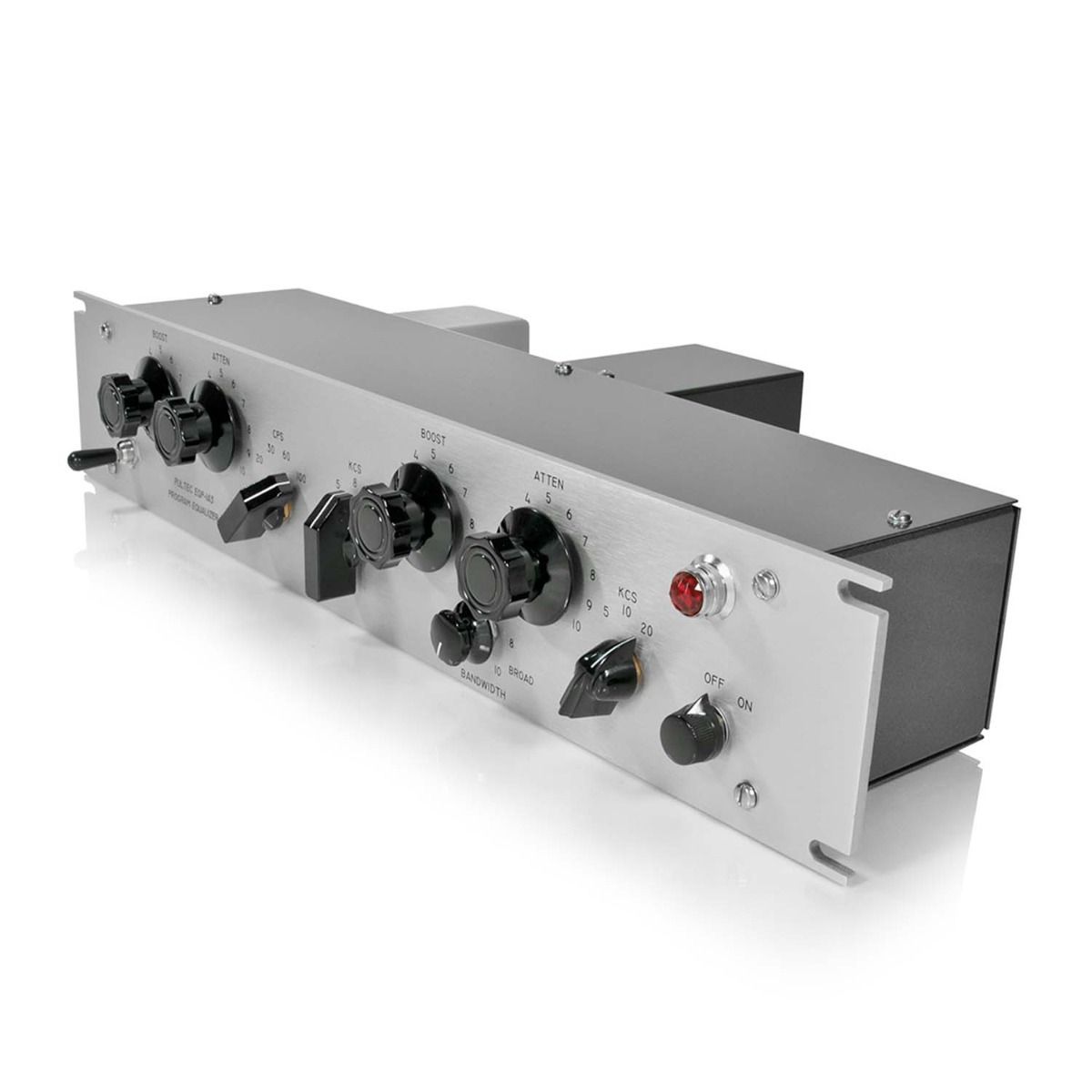

EQP-1A3
The 2U (3.5″ tall) EQP-1A3 is a condensed version of the 3U (5.25″ high) EQP-1A. In 1971, after 10 years of EQP-1A production and due to customer demand, Gene and Ollie rearranged controls and components to reduce the height of the popular equalizer. As indicated on the original EQP-1A3 product brochures “SAME PARTS, SAME SPECS”. The EQP-1A3 was the first product in the Pultec line that we brought back into production and has continued to be very popular. New York City’s Power Station had 24 of them in each control room! We now make them both, so you can take your pick. But be assured, they both have all that Pultec mojo that you are seeking.
SPECIFICATIONS
20, 30, 60, 100 CPS (Hz) shelf boost, 0 – 13.5 dB
20, 30, 60, 100 CPS shelf attenuate, 0 – 17.5 dB
3, 4, 5, 8, 10, 12, 16 KCS (kHz) peak boost, 0 – 18 dB
5, 10, 20 kcs shelf attenuate, 0 – 16 dB
Input Impedance: ~600 Ohms
Output Impedance: ~50 Ohms
Noise: 92 dB below +10 dBm
Distortion: ≤ 0.15% at +10 dBm into 600 Ohms
Amplifier: Flat, 20 CPS to 20 KCS, +/- 0.5 dB
Tubes: 1 ea 12AU7, 12AX7, 6X4
Units in box: 1
