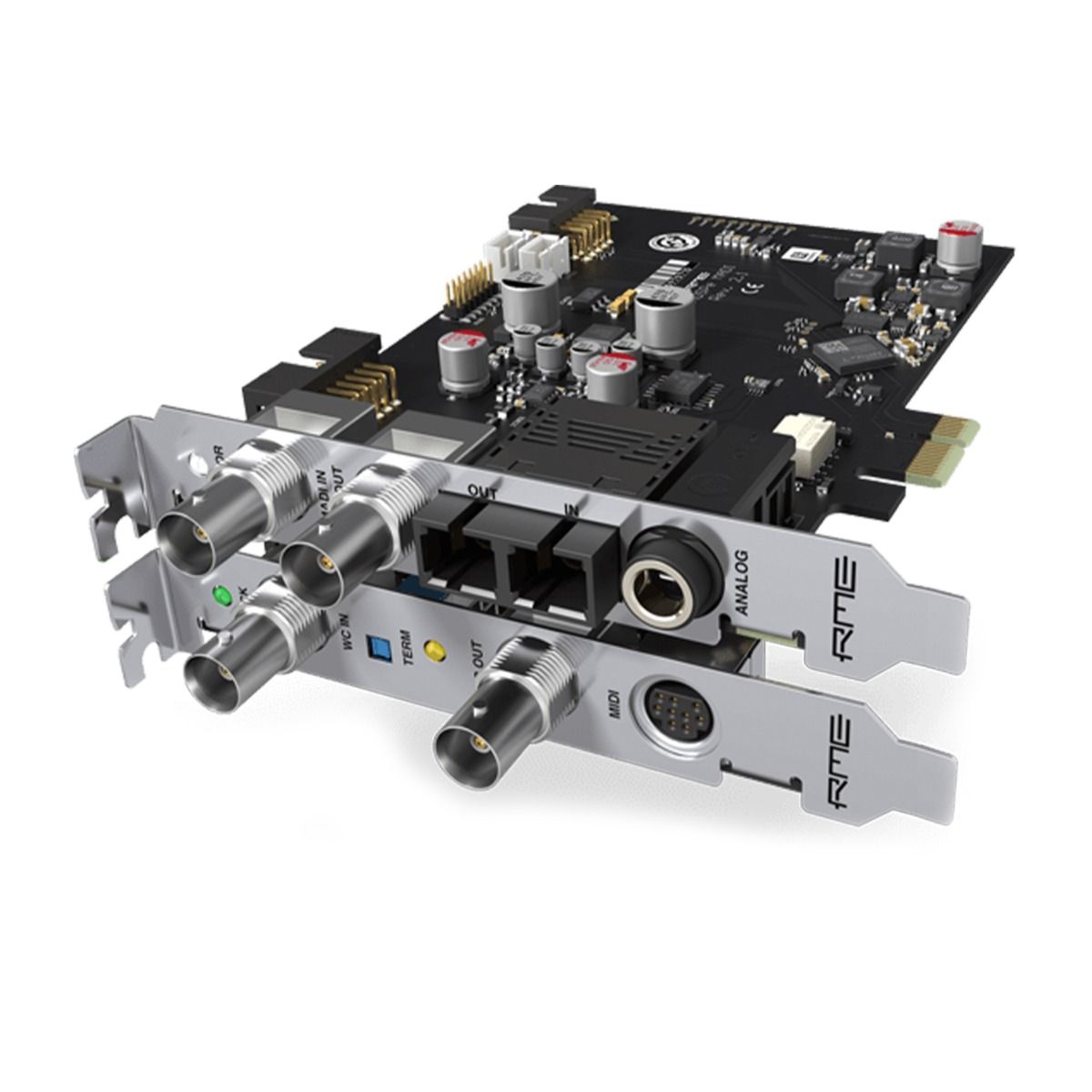

RME HDSPe MADI

RME HDSPe MADI Features:

PCI Express interface
1-Lane PCI Express Endpoint device (no PCI Express to PCI Bridge), revision 1.1.
2.5 Gbps line speed
Packet-based full-duplex communication (up to 500 MB/s transfer rate)
All settings changeable in real-time
Automatic and intelligent master/slave clock control
Sync sources: MADI coaxial, MADI optical, word clock, internal
Varipitch: by input signal or word clock
Sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (Sync/word clock)
Sample Rate Range: MADI: 32 kHz - 96 kHz, word clock: 27 kHz - 200 kHz
Jitter: < 1 ns, internal and all inputs
Jitter sensitivity: PLL operates even at 100 ns Jitter without problems
Comes with DIGICheck: the ultimate measurement, analysis and test tool

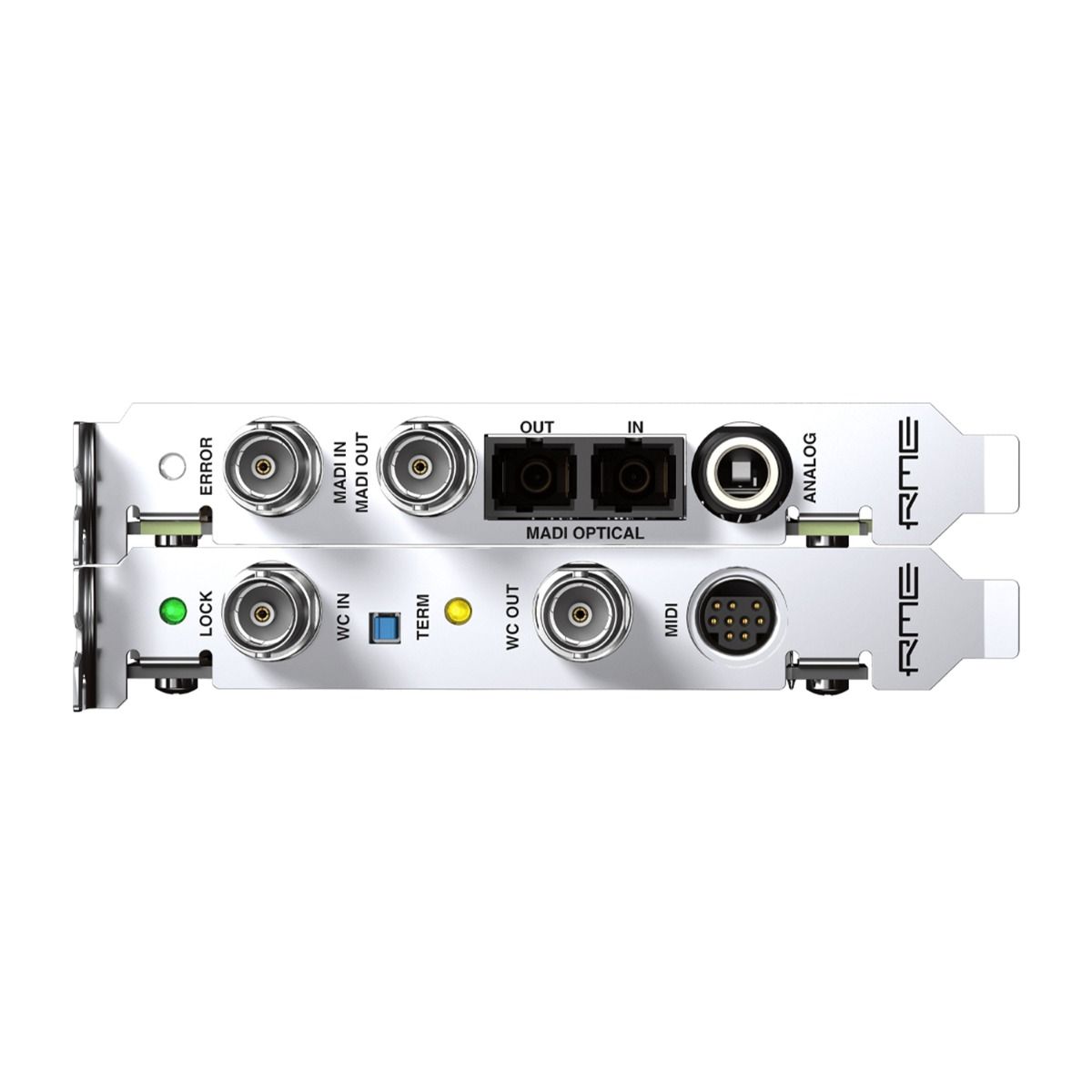

Input MADI optical, MADI coaxial (BNC), 2 x MIDI, word clock (BNC)
Output MADI optical, MADI coaxial (BNC), 2 x MIDI, word clock (BNC), stereo analog line/phones
Input word clock: BNC, Signal Adaptation Circuit (functional from 1.2 Vpp input signal), switchable termination
Output word clock: BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
MIDI input and output: via four 5-pin DIN jacks
Sample rates up to 192 kHz
Even lower latencies than HDSP MADI
Enhanced TotalMix
Monitor output with low-latency converter technology of ADI-8 QS
Direct support of HDSP TCO
