The fixed cardioid TF17 combines a rich, mid-forwardvoicing with portable and dependable modern phantom-powered circuitry for all recording environments.

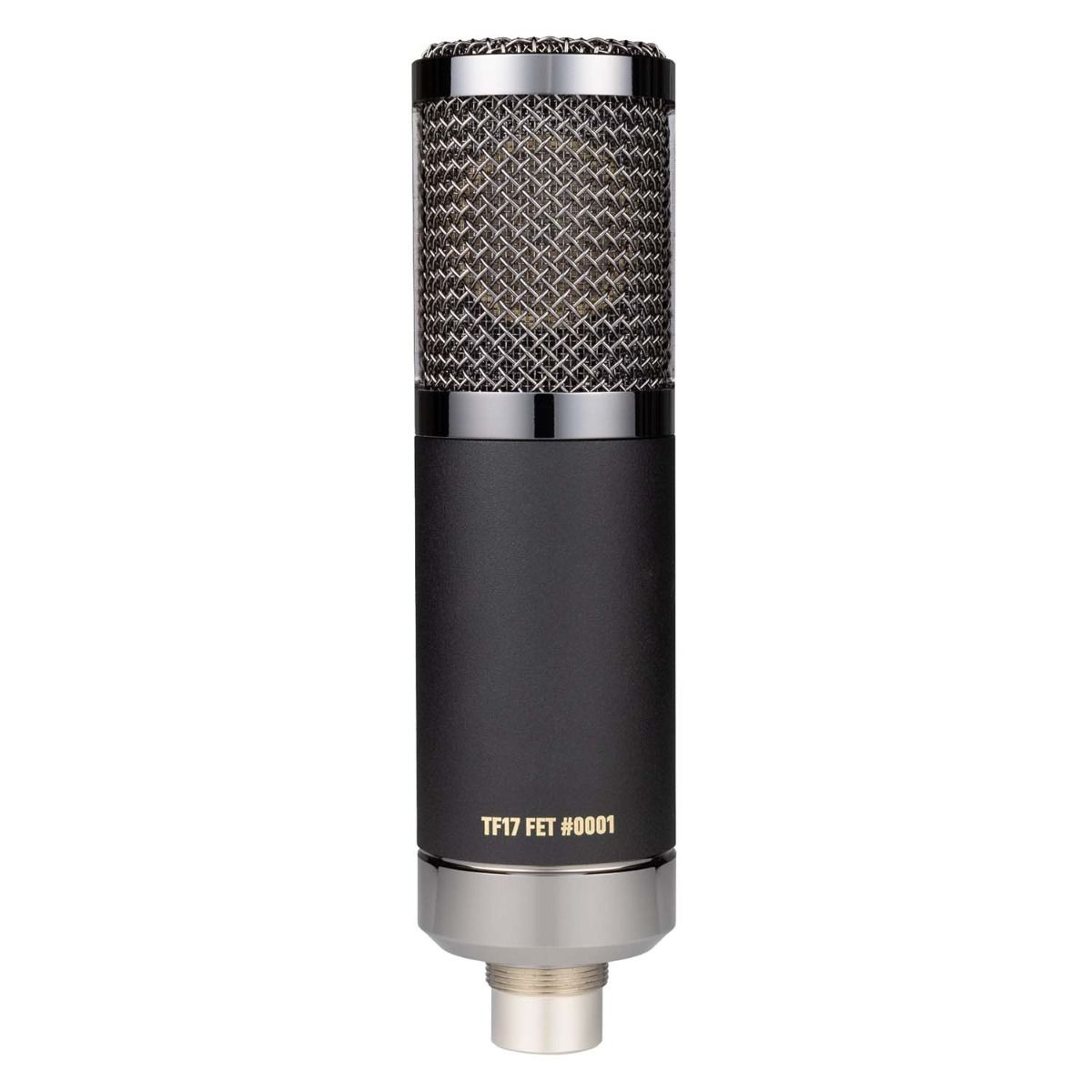

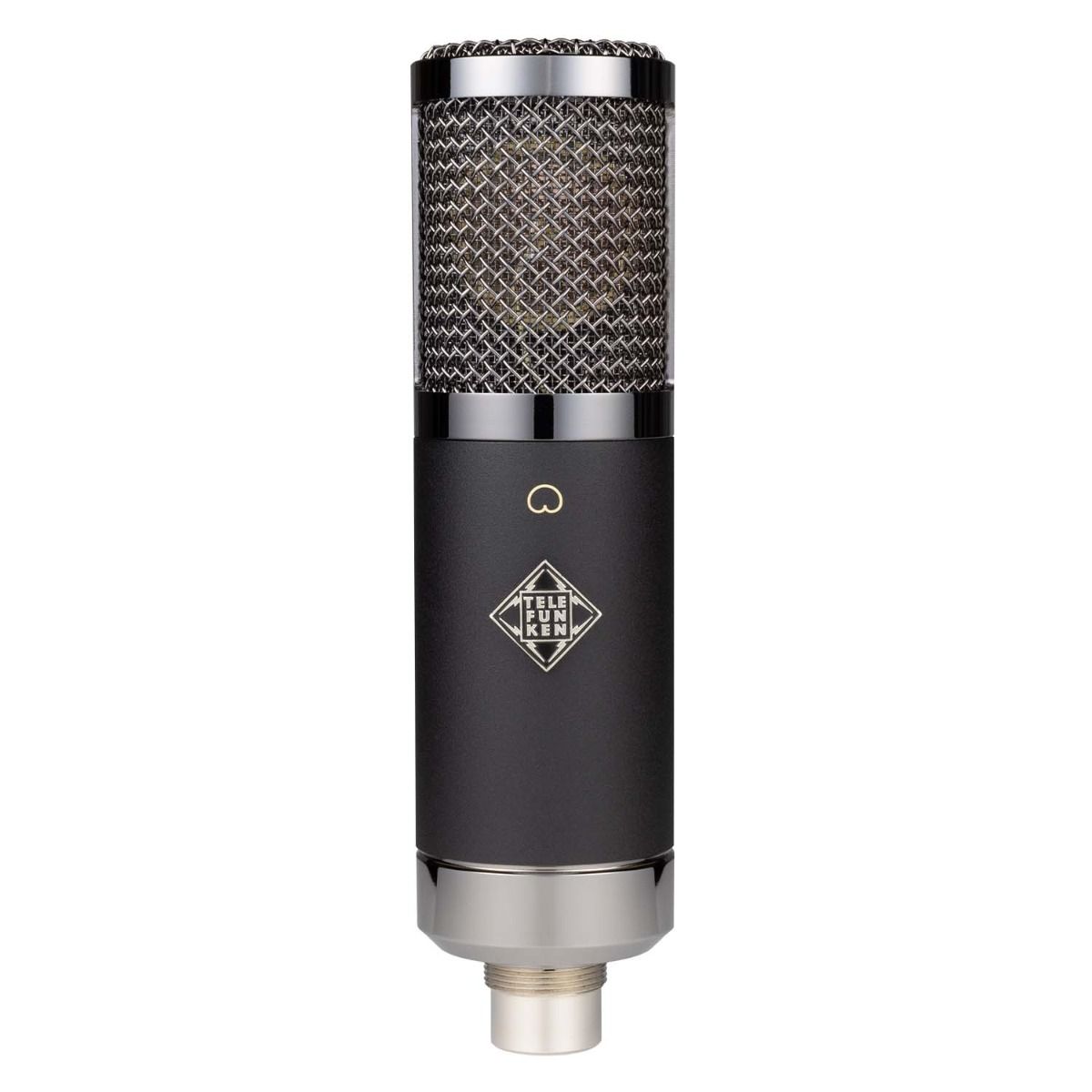

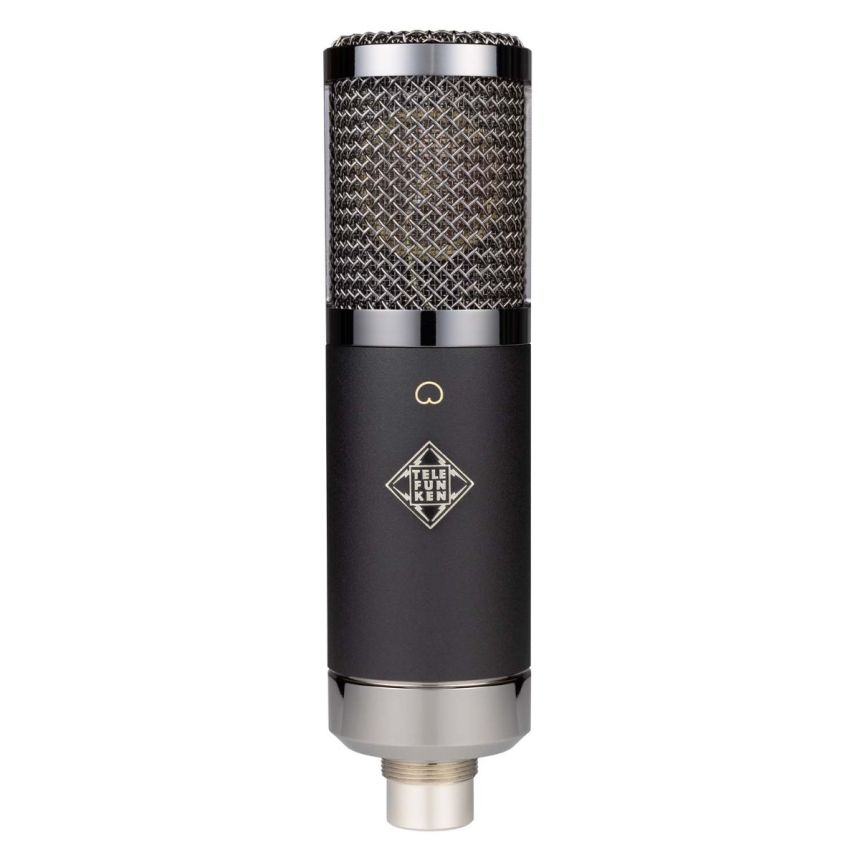

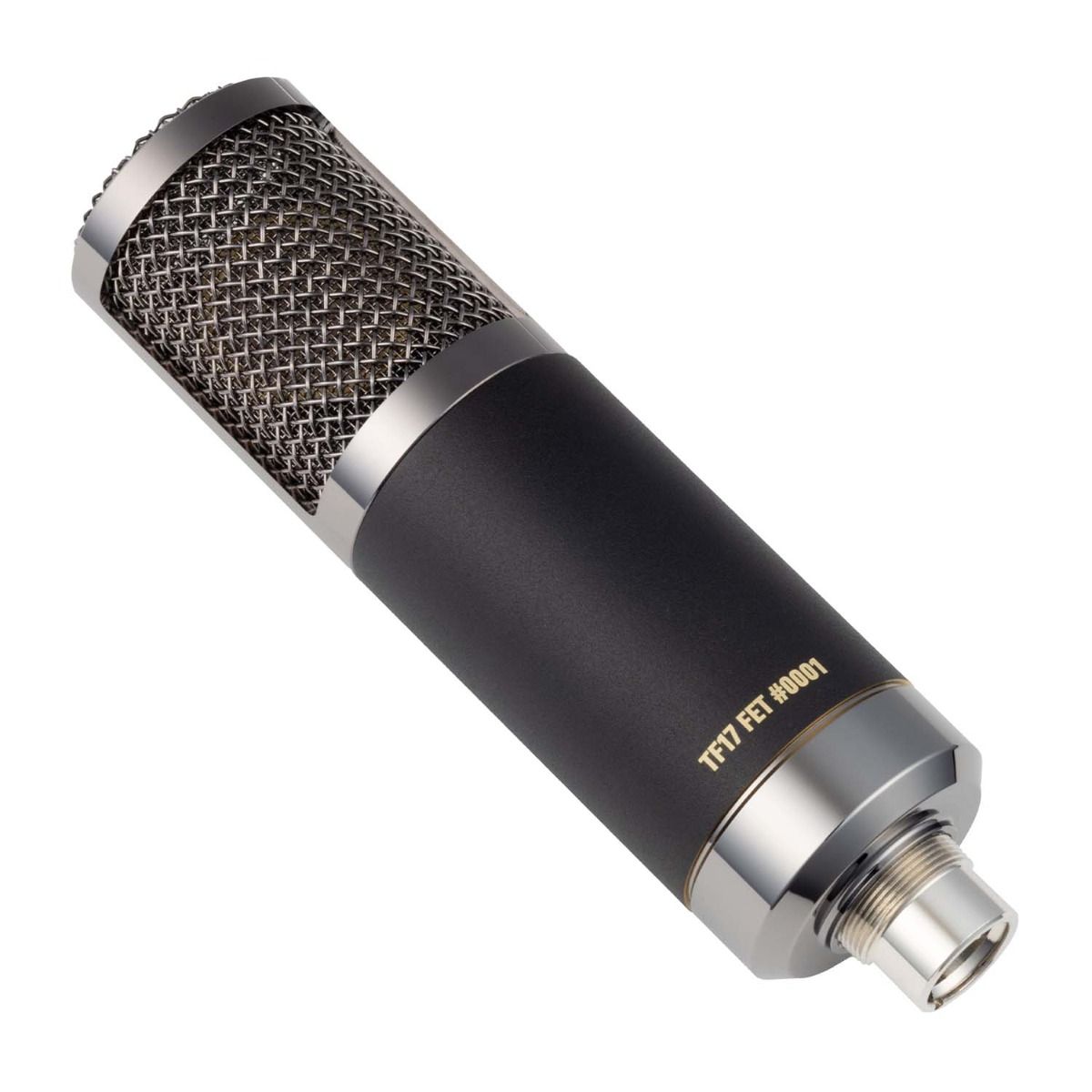

TF17 FET

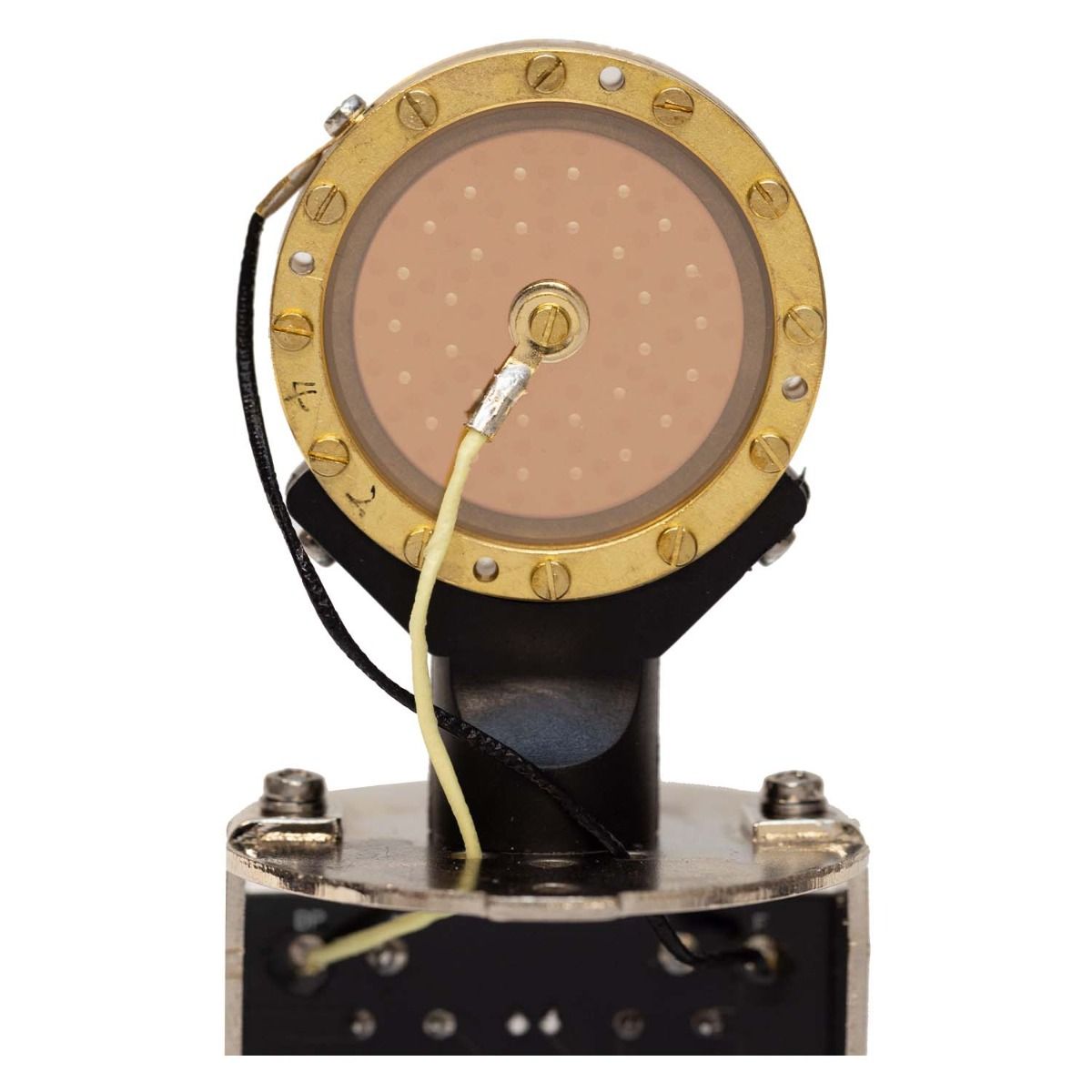

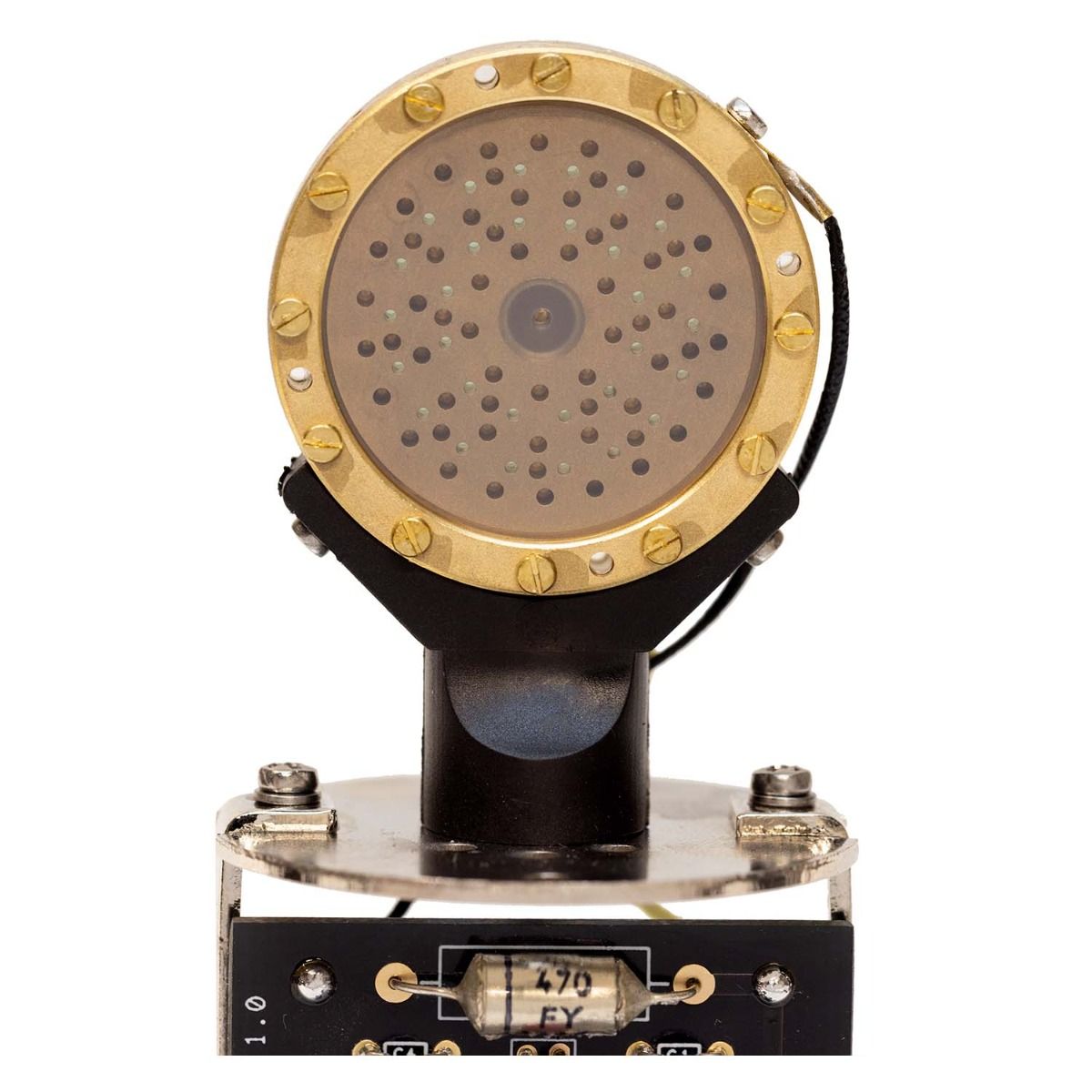

The TF17 is the newest voice in the Alchemy Series and the latest offering of Telefunken’s vintage-inspired phantom-powered condenser microphones. Combining an iconic mid-forward “German” voicing with modern FET technology, the TF17 is sonically bold with a punchy transient response, high SPL handling, and very low self-noise. Its extended low frequency response, strong midrange, and a smooth top end benefit sources including voice, drums, electric guitar, and piano. Designed with all recording environments in mind, the fixed true cardioid TF17 is perfect for home, studio, or stage. The TF17 features a K47-style center-terminated capsule, premium through-hole components and a UK-made OEP/Carnhill transformer with a high-grade nickel-iron core.
FEATURES
Bold and forward tone with punchy transient response
Compact size suitable for all recording environments
Fixed true cardioid polar pattern with K47-style capsule
High SPL handling, low noise phantom-powered FET amplifier
UK-made OEP/Carnhill transformer with high grade nickel-iron core
Designed and assembled by hand in the USA
Recommended Applications: Vocals, Drums & Percussion, Electric Guitar, Live Sound
TECHNICAL SPECIFICATIONS

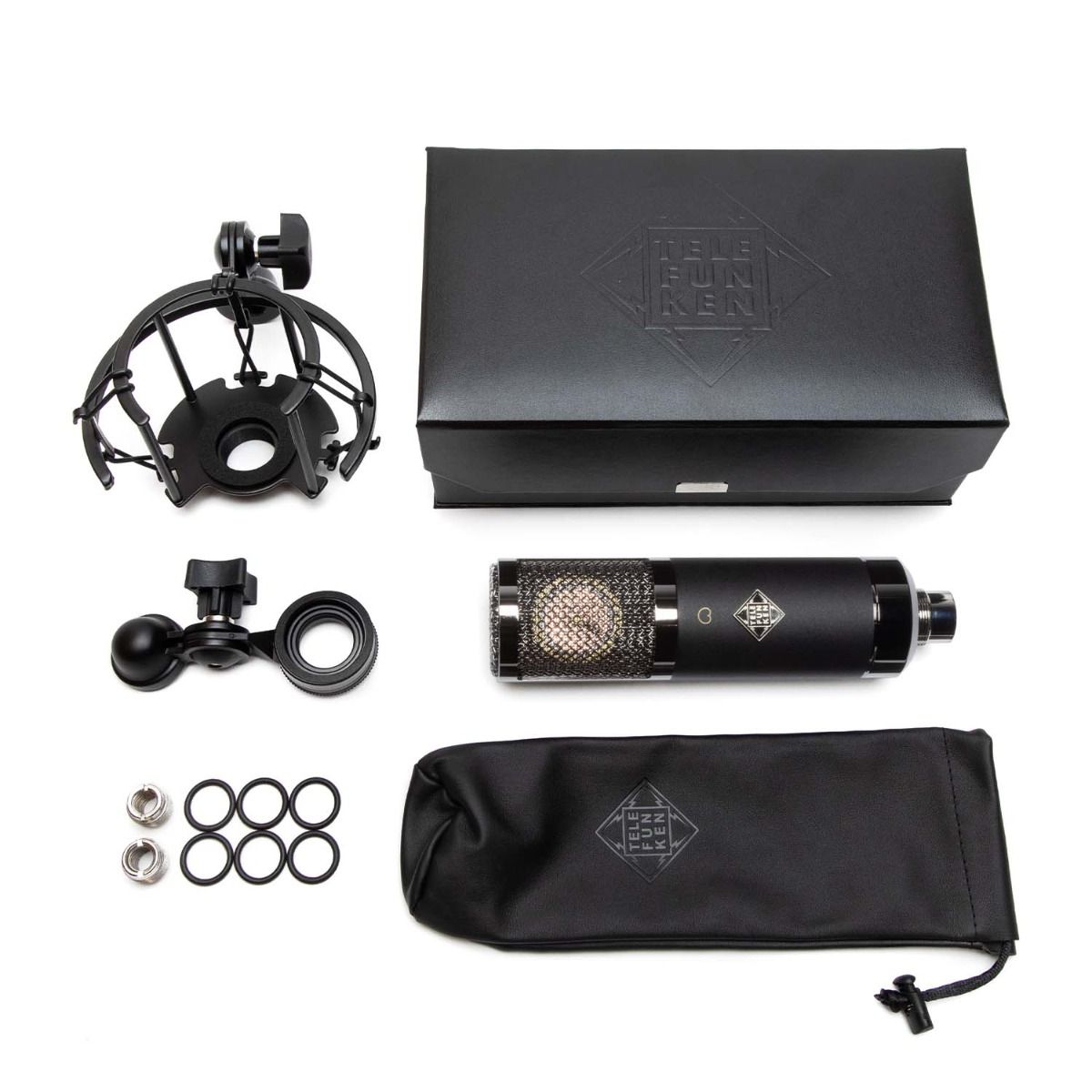

Type: FET Condenser Polar Pattern: Cardioid Frequency Range: 20 Hz – 20 kHz, ±3 dB Power Source: +48V Phantom Power Capsule: TK47S – Center Terminated Large Diaphragm, Single Membrane Transformer: OEP/Carnhill T217 Sensitivity: 12 mV/Pa, ±1 dB THD at 1kHZ at 1Pa (Amplifier): 0.01% Output Impedance: < 200 Ω Maximum SPL (for 1% THD): > 135 dB S/N Ratio: 91 dBA Self Noise (Amplifier): 3 dBA Dimensions: 175 mm L x 46 mm Dia Weight: 545 g Included Accessories: Shock Mount, Stand Mount, Mic Sleeve, Mic Case
